V.12
V.12
Full-range, passive two-way system
KTV specific voicing
Enhanced bass response from rear port
LF driver with demodulating ring for distortion-free vocals
User-rotatable horn
Vertical and horizontal mounting option
Cloth-backed perforated steel grille
Trapezoid enclosure with textured finish
8Ω nominal impedance
Internal crossover network with LF and HF driver protection
Twin NL4 connectors
Multiple M8 rigging inserts
V.12
Cam kết chất lượng
Cam kết dịch vụ
Cam kết giá tốt

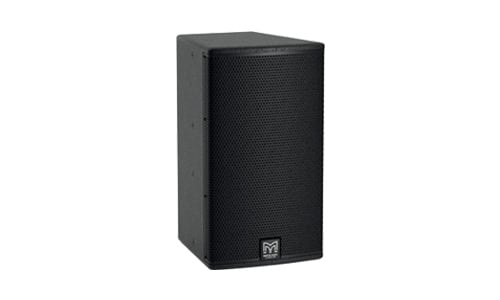

Model: V.12
Overview
With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.
Thông số kỹ thuật
| TYPE | Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 62Hz-20kHz ± 3dB, -10dB @ 47Hz |
| DRIVER |
|
| RATED POWER (2) | 600W program, 1200W peak |
| SENSITIVITY (8) | 99dB |
| MAXIMUM SPL (9) | 127dB program, 130dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | Trapezoid |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 14 x M8 inserts |
| DIMENSIONS |
|
| WEIGHT | 21kg (46.3lbs) |
