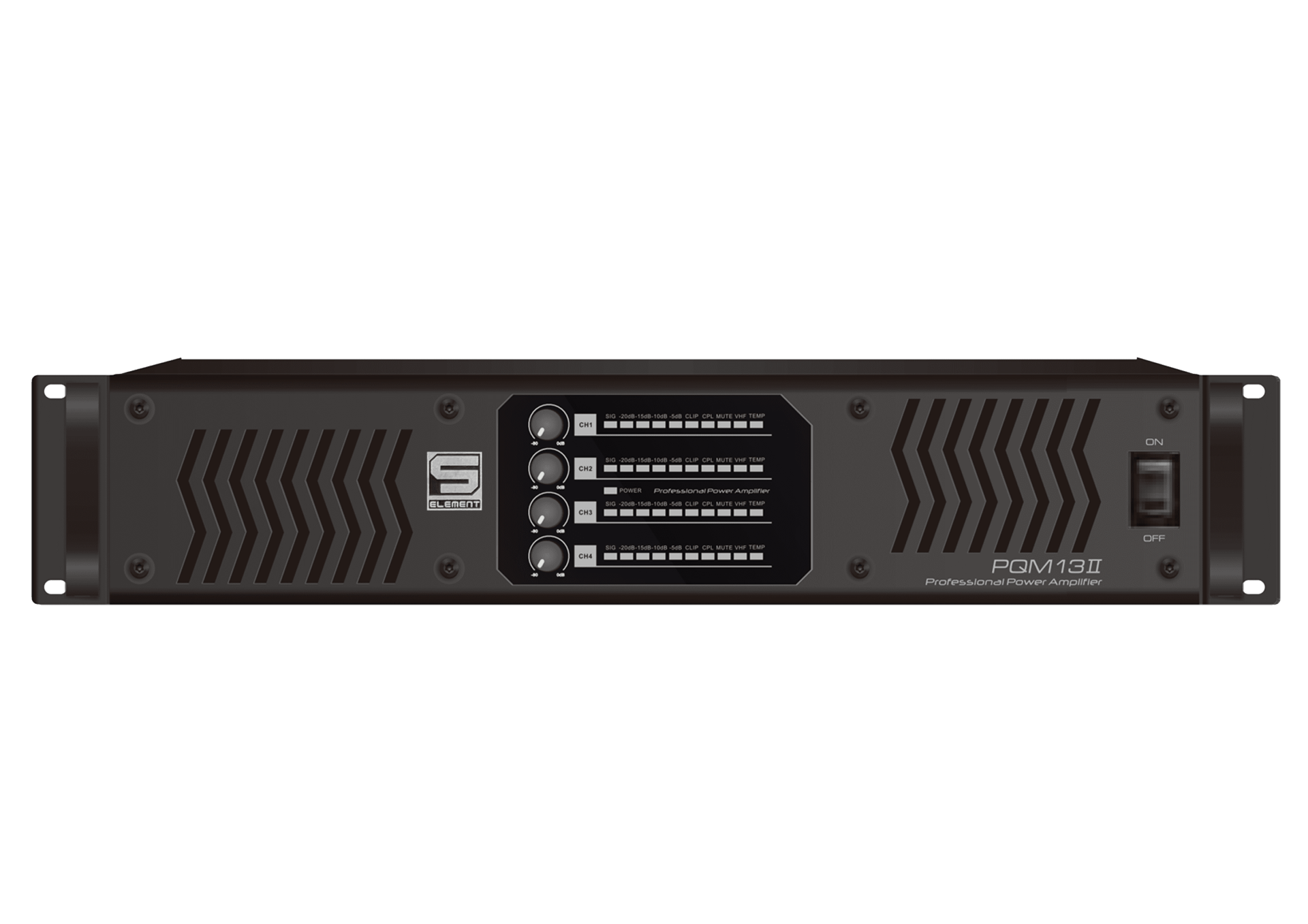

PQM13II
PQM13II
Type: 4-channel power amplifier
8Ω (Stereo): 4 x 1300W
4Ω (Stereo): 4 x 2100W
2Ω (stereo):4 x 2500W
8Ω (bridge): 2 x 4200W
4Ω (bridge): 2 x 5000W
Frequency response (+0/-1.5dB): 20Hz-20kHz
Input sensitivity: 0.775V、1.0V、1.4V；38dB、32dB、26dB
Total harmonic distortion: <0.05%
SNR: ≥80dB
Output category: Class ITM power module
Conversion rate: ≥10V/US
Input impedance(balanced / unbalanced): 20KΩ/10KΩ
Protection function: Soft start/VHF/DC/short - circuit/overload/peak -cut/false voltage limit/peak current limit/overheating/boot volume is greater
Power Requirements: AC2200-240V~50-60Hz
Power supply requirements: 16A power cord
PQM13II
Cam kết chất lượng
Cam kết dịch vụ
Cam kết giá tốt
Model: PQM13II
Thông số kỹ thuật
Type: 4-channel power amplifier
8Ω (Stereo): 4 x 1300W
4Ω (Stereo): 4 x 2100W
2Ω (stereo): 4 x 2500W
8Ω (bridge): 2 x 4200W
4Ω (bridge): 2 x 5000W
Frequency response (+0/-1.5dB): 20Hz-20kHz
Input sensitivity: 0.775V、1.0V、1.4V；38dB、32dB、26dB
Total harmonic distortion: <0.05%
SNR: ≥80dB
Output category: Class ITM power module
Conversion rate: ≥10V/US
Input impedance(balanced / unbalanced): 20KΩ/10KΩ
Protection function: Soft start/VHF/DC/short - circuit/overload/peak -cut/false voltage limit/peak current limit/overheating/boot volume is greater
Power Requirements: AC2200-240V~50-60Hz
Power supply requirements: 16A power cord
