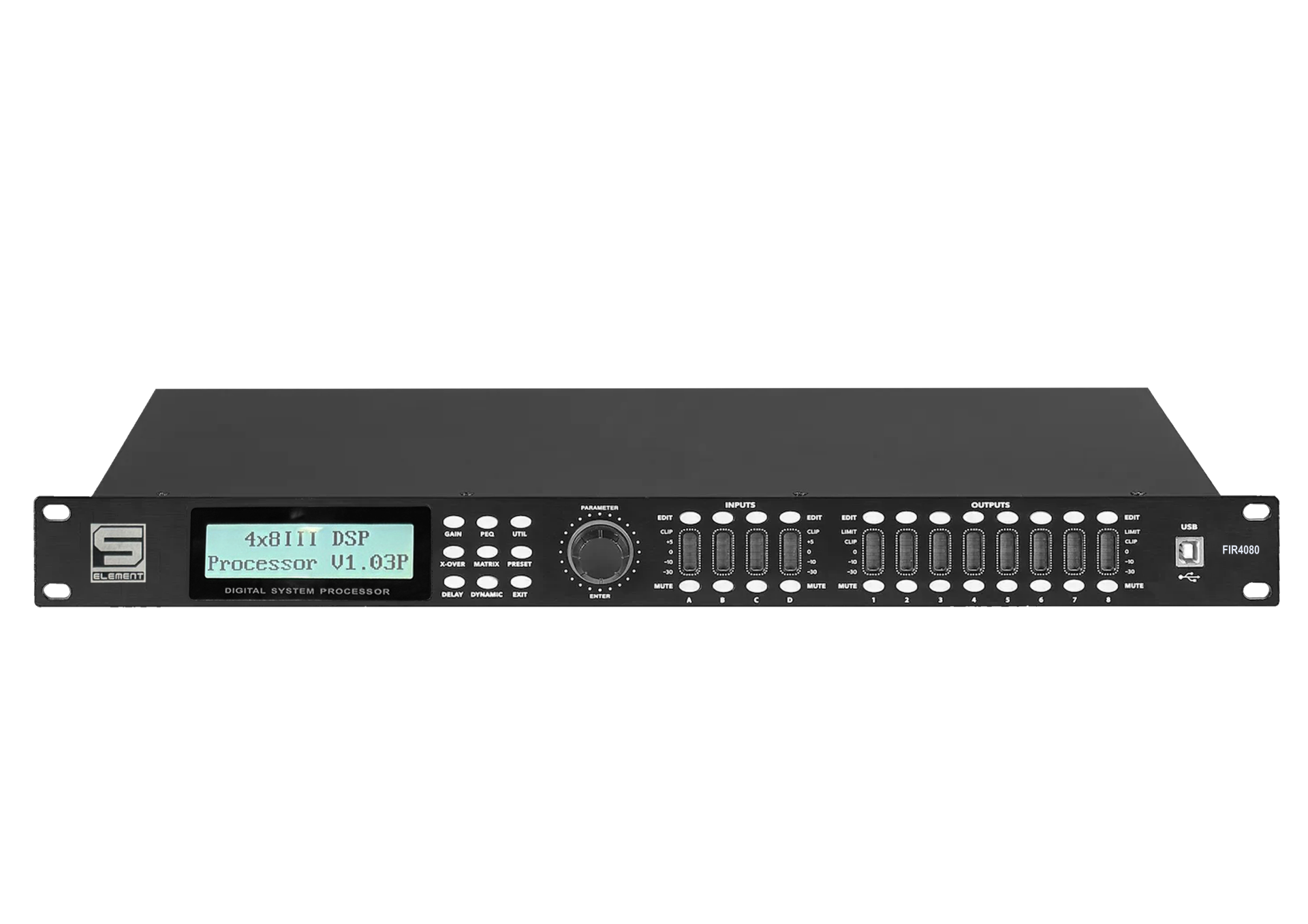

Model: FIR4080

Thông số kỹ thuật

Analogue Inputs – 4
Electronically balanced, pin 2 hot
CMRR : >60dB @ 1kHz
Maximum Level : >20dBu
Input Impedance : 10kΩ balanced
AES Inputs – 2 x 2 channel
Transformer balanced, pin 2 hot
AES Input Sample Rates : 8kHz to 192kHz
AES Input s/n Ratio : 139dB
Input Impedance : 110Ω
Analogue Outputs – 8
Electronically balanced, pin 2 hot
Maximum Level : >20dBu
Source Impedance : <60Ω
AES Outputs – 4 x 2 channel
Transformer balanced, pin 2 hot
Sample Rate : same as operating sample rate
Source Impedance : 110Ω
Performance
Frequency Response (12Hz to 32kHz) : +/-0.2dB
Dynamic Range : >119dB 'A' weighted (in to out analogue)
